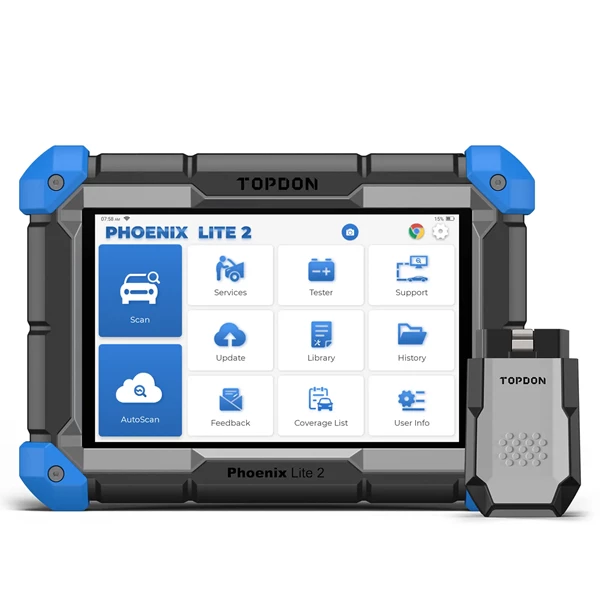

Topdon Phoenix Lite 2 Diagnostic Tool
The Phoenix Lite 2 is TOPDON’s new compact pro-level scan tool. It is a top segment Tool in terms of performance and features and offers very good features to its users. It can do most of the reset, programming and support many brands.
Topdon Phoenix Lite 2 Diagnostic Tool Specs
- LCD 8-Inches 1280*800 Pixels
- System CPU 4-Core Processor, 2.0 GHz Operating System: Android 10.0 RAM 2G, ROM 32G.
- Battery :12600 mAh / 3.8V (tested to have up to 24h of battery life with the screen on) Operating Voltage: 9~18V
- Temperature Phoenix Lite 2 CPU 4-Core Processor, 2.0 GHz Operating System: Android 10.0 RAM 2G, ROM 32G System Battery
- Specification Product Dimensions: 258*183*50.5mm (10.2*7.2*2 inches) Package Dimensions: 468*320*143mm (18.4*12.6*5.6 inches) Net Weight: 1184.5g (2.61 lbs.)
- Languages English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech
MDCI Lite
Topdon Phoenix Lite 2 Diagnostic Tool Features
Online Coding
The Phoenix Lite 2 supports online coding for BENZ, BMW, PORSCHE, VW, AUDI, SEAT and more vehicles.
The feature most needed by car mechanics is online coding. These are services needed and requested in terms of ECU mapping or hidden feature unlock programming.
It serves as a guide especially for users working with VAG group (VW, AUDI, SKODA, SEAT).
- The security access code
- Channel numbers to perform matching,
- Calibrations,
- Basic adjustments or settings
- Effectively streamlining the diagnostic process.
- 28+ Maintenance Services
- Supports over 200 vehicle brands
- GM, FORD, Chrysler, Benz, BMW and more
Bi-Directional Control to Identify Problems Accurately
The Phoenix Lite 2 can perform individual tests for single actuators to wise up actuator functions.
- Capabilities include fuel injectors
- Coolant pumps,
- Window
- Windshield wipers, and more
- OE-Level Full System Diagnostics
- Provides deep access to the entire system
- Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning Systems, and more. The Phoenix Lite 2 reads & clears fault codes with ease.
- FCA Gateway Access
The Phoenix Lite 2 offers FCA Gateway access to perform enhanced diagnostics, such as clearing DTCs, bi-directional control, Oil resets, SAS resets and more special functions on FCA vehicles (Chrysler, Dodge, Jeep and more).
- Quick Access to Vehicle Information with AutoVın , vehicle make ,model and year.
- Wireless Bluetooth Diagnosis easy connection without the need for cables
- Battery capacity and status test
Topdon Phoenix Lite 2 Diagnostic Tool Essential Functions
- ECU Information
- Read Fault Codes
- Clear Fault Codes
- Read Data Streams
- Bi-directional Control
Topdon Phoenix Lite 2 Diagnostic Tool Special Features
- Online Coding
- Maintenance Services
- VAG Guided Function
- FCA Gateway Access and more
Expanded Functions
- BTMobile Pros Compatibility
Others
- Save and Share Reports
- Print Report Via PC
- Generate Health Reports
- One-Click Software Update
- Feedback Customized Diagnostic Reports
- AutoVin
28 Maintenance Services
- Oil Reset
- EPB Reset
- SAS Reset
- BMS Reset
- ABS Bleeding
- Throttle Matching
- DPF Reset
- Injector Coding
- Suspension Reset, Gearbox Reset ,AFS Headlamp Reset ,IMMOBILIZER ,Gear Learning ,TPMS Reset, Sunroof Reset, A/F Reset ,NOx Sensor Reset ,Odometer Calibration ,Seats Calibration ,STOP/START AIRBAG Reset, Transport Mode ,TIRE Reset ,Windows Calibration ,ADBLUE Reset, Coolant Bleed, EGR Reset ,Language Change
HAREWARE
CPU 4-Core 2.0GHz
RAM 2G
ROM 32G
Battery Capacity 12600mAh/ 3.8V
Android Version Android 10.0
Screen Size 8 inch
Screen Resolution 1280×800
Wi-Fi 2.4 & 5 GHz
Camera Rear8.0 mp
Weight 1.18kg (2.61 lb)
SOFTWARE
Cloud-Based Programming X
Remote Desktop +
Communication VCI/Bluetooth
ADAS Compatibility X
IMMO Compatibility T-Ninja Box (ECU clone is not supported)
Oscilloscope Compatibility X
Battery Tester Compatibility BTMobile Pros
FCA Secure Gateway FCA Official Account Subs Fee
Daily Maintenance Functions
Only the Commonly Used 28
Special Functions, such as :EPB OLS, BMS, DPF, SAS, TPMS, etc.)
Auto VIN +
Full-System Diagnostic +
Diagnostic Topology Display X
Diagnostic Protocols: D-PDU/J2534/RP1210 X
Bus Protocols: DoIP/CAN FD X
Heavy Duty (Optional) X
Software Languages 22 Languages English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish，Czech
