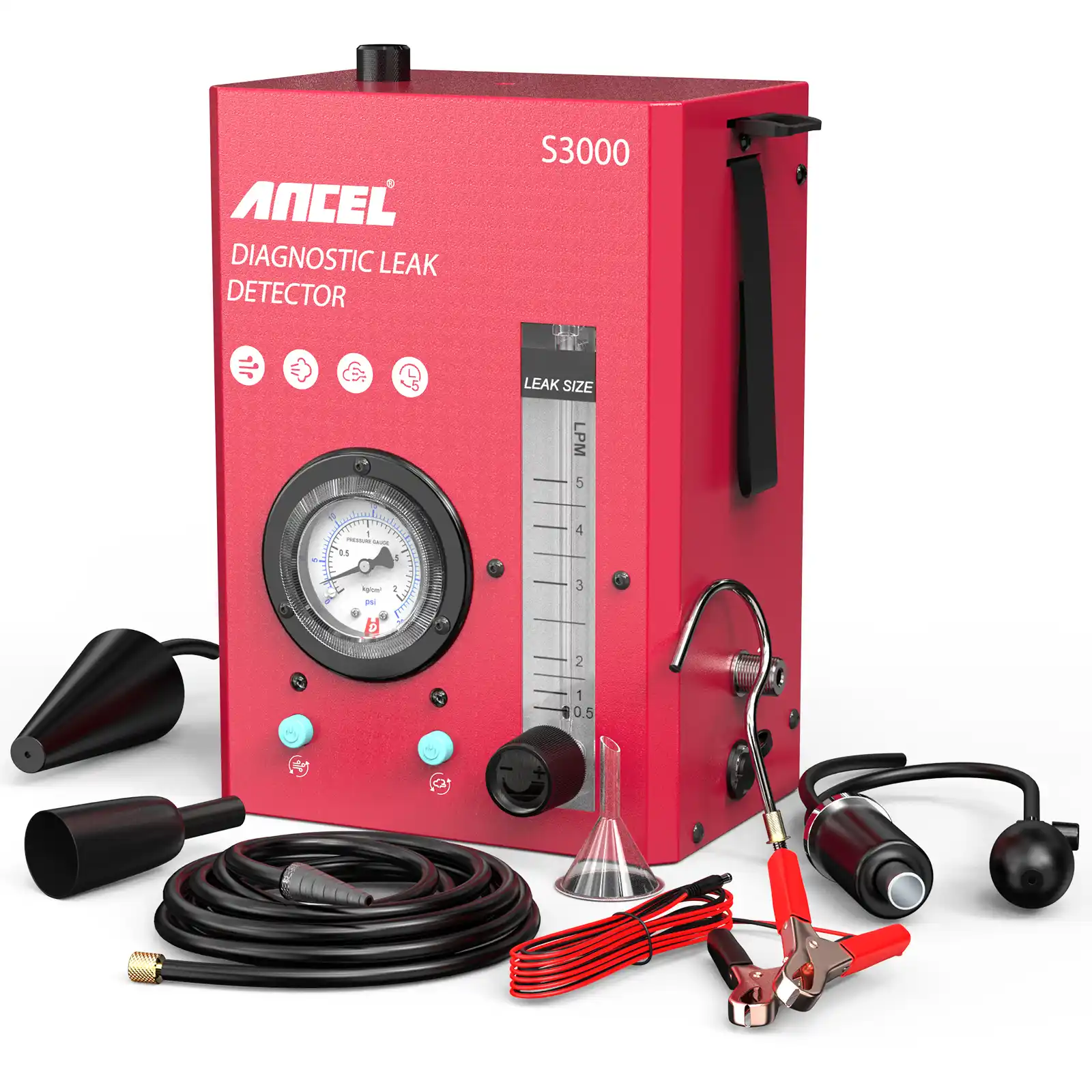

Ancel S3000 EVAP Gas Leak Detection and Fuel Pipe Diagnostic Machine
ANCEL S3000 EVAP Gas leak and Fuel pipe diagnostic machine is a universal and professional machine.
Thanks to the ANCEL S3000, you can test systems like the intake system, exhaust system, fuel tank, and detect any leaks.
Ancel S3000 EVAP Gas Leak Detection and Fuel Pipe Diagnostic Machine Functions:
The ANCEL S3000 machine offers a wide range of vehicle coverage: Thanks to the ANCEL S3000 you can make leak test piping systems in cars, motorcycles, off-road vehicles, commercial vehicles, ATVs, boats, in short, in all vehicle types.
The ANCEL S3000 is a very powerful machine and it is quite easy to use: The machine has its own air pump, so you do not need to use other air machines. Smoke starts to release 30 seconds after the machine is connected to 12V electricity.
The ANCEL S3000 includes advanced technology: You can work on the EVAP system with the advanced technology inside.
The ANCEL S3000 protects itself in case of overheating and overcooling: If the operating temperature of the machine drops above 75 degrees or below -20 degrees, the machine detects this and puts itself into protection.
How is the leak test done with the machine?
- Baby oil can be used for the test. Fill 20 ml of baby oil and hang the machine.
- Turn on the machine after giving 12V electricity to the machine.
- The machine will fill the pipe with smoke within 30 seconds, you should check the leak points.
Pay attention to when working with the machine:
- If you will use the ANCEL S3000 smoke detector machine for the first time, fill the machine with 20 ml of baby oil. Be careful, you should not fill more than 20 ml.
- You should fill the oil when the smoke starts to decrease and make sure it is 20 ml.
- You must change the oil of the machine regularly.
- Do not run the machine for more than 8 minutes because the machine needs to rest.
- The machine is hot during running, you must be careful when touching it.
- If you need to separate the pipes, you need to cover the other sides with stoppers.
Package content: Power cord, funnel, hook, user manual, air inlet pouch, adapter cone, rubber, fume distribution hose.
